SECH ultracapacitor modules impress due to their slim, light and robust design and are characterized, as are the single cells themselves, by excellent electrical parameters. The single cells are connected to each other via aluminum bus bars, with all contacts being laser welded. The module design is scalable and flexibly conceived in order to realize energy storage with higher voltages by using series or parallel connections.

Our modules are equipped with either passive or active balancing and monitoring electronics for perfect operation of the cells, as well as a CAN communication interface. Customer-specific power and signal connections as well as communication formats are available.

Ultracapacitor modules are nowadays used in hybrid buses, rail applications, in wind power plants, for (emergency) power supply and UPS systems as well as in a variety of other industrial applications.

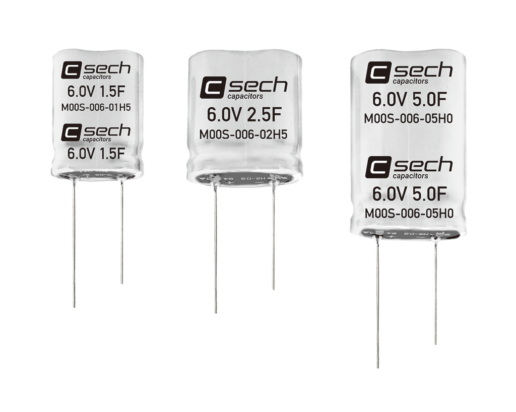

6V small cell modules

1.5F, 2.5F, 5F, 6V

SECH’s 6V small cell modules are typically used in UPS applications. They are suitable where pulse power and small amounts of capacitance are required. They provide excellent DC life performance and an anti-wetting design.

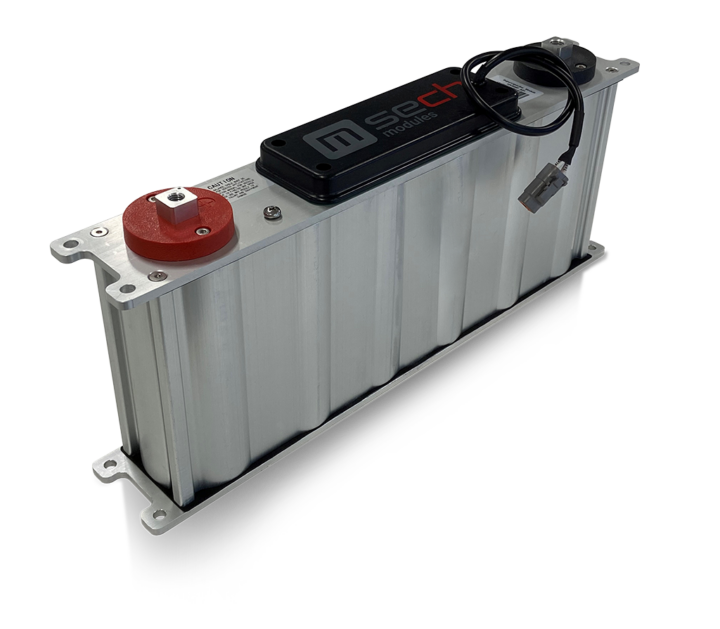

18V large cell module

500F

SECH’s 18V ultracapacitor module is based on all-laser welded internal connections providing a robust and vibration proof design. It is available with active or passive cell balancing and can be configured for higher voltages and energy if needed.

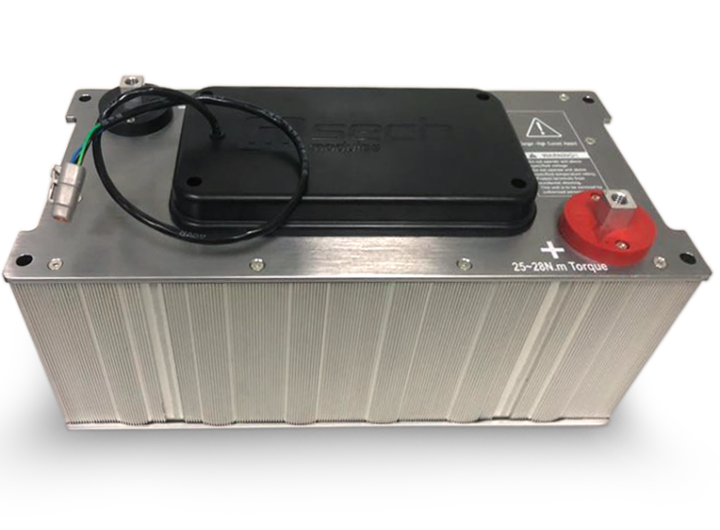

54V large cell module

166F

SECH’s 54V ultracapacitor module is based on all-laser welded internal connections providing a robust and vibration proof design. It is available with active or passive cell balancing and can be combined in series to achieve voltage levels of up to 800V.

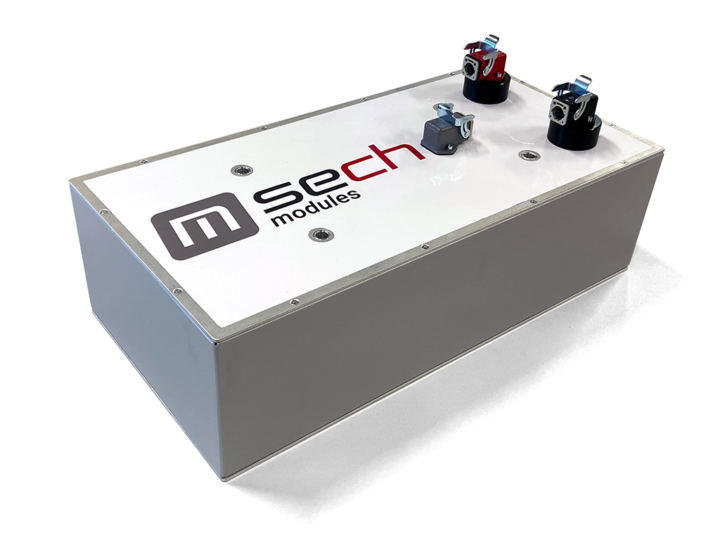

96V large cell module

93F

SECH’s 96V module is typically used for wind turbine pitch control, industrial uninterruptable power supply (UPS) and dynamic voltage restorer (DVR) applications. SECH offers customized voltage and capacitance ranges using the same module design concept. The concept features laser welded internal connections and passive cell balancing and temperature monitoring.

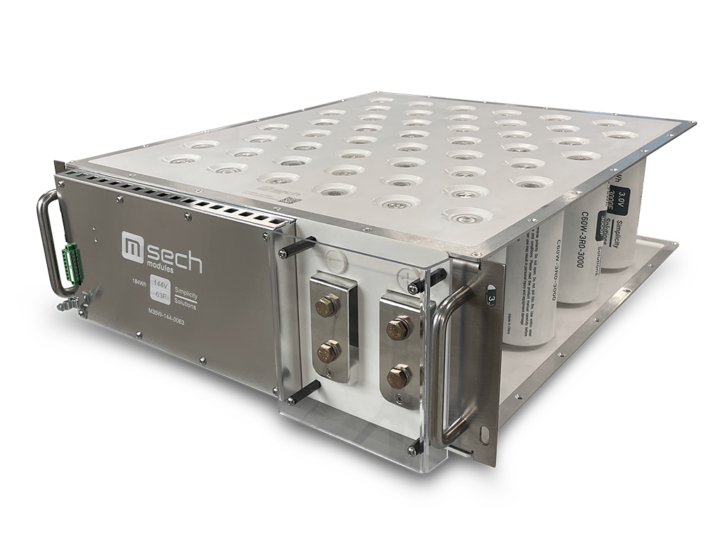

144V ESS module

63F

SECH’s energy storage system (ESS) module shows a stackable 19” rack design. It is the basic element to build up larger scale stationary energy storage systems for applications such as grid stabilization, transportation substations and UPS. The ESS module features ultra-low ESR, laser-welded connections, active voltage balancing, temperature monitoring and diagnostics through a CAN bus interface.

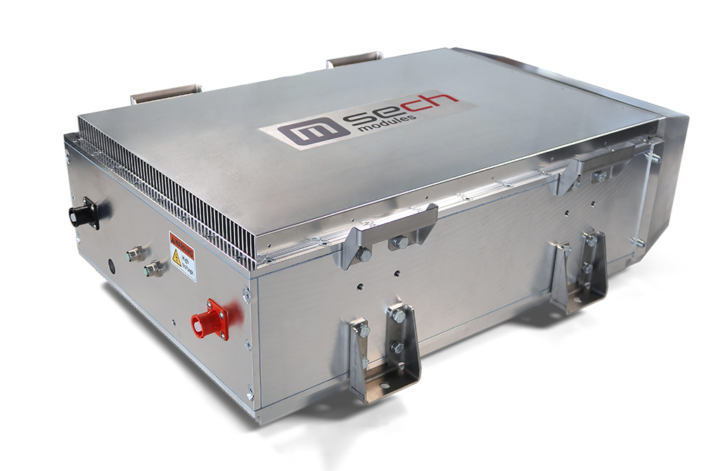

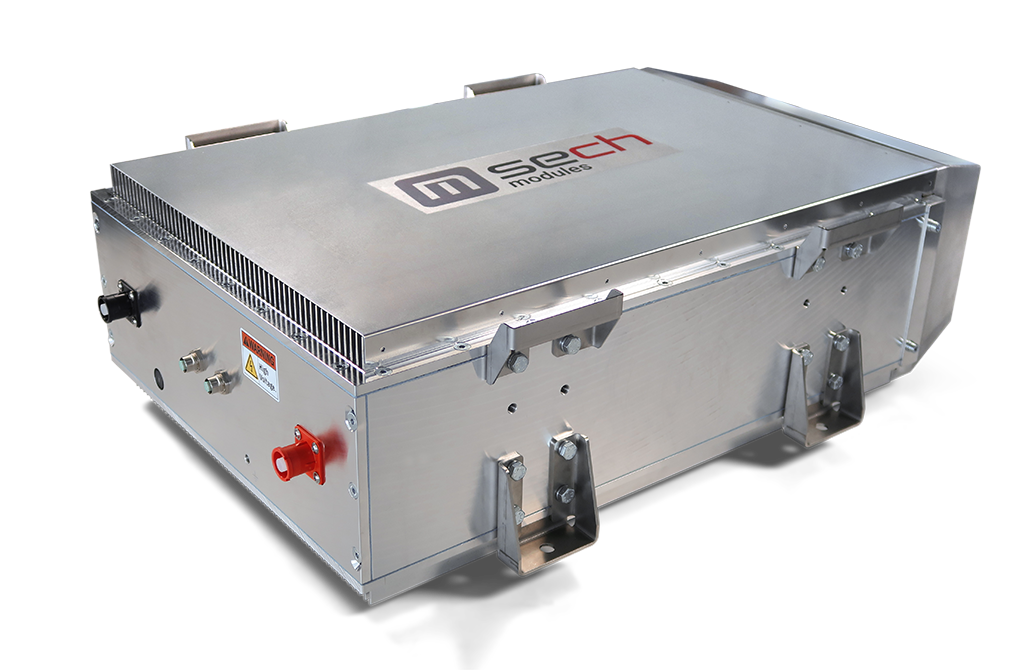

144V PSS module

63F

SECH’s power storage system (PSS) module stands out for industry-leading performance and lifetime. This high-performance product is based on SECH’s 3000F ultra-low ESR POWER cells. The module is typically used for hybrid buses, light rail, trolleys, seaport cranes, as well as construction and mining vehicles. The PSS module meets IEC 16750-3 table 12 vibration requirements and IP69 protection level. It is available with air cooling or liquid cooling provisions. The module incorporates active voltage balancing, monitoring through CAN bus interface and thermal management.

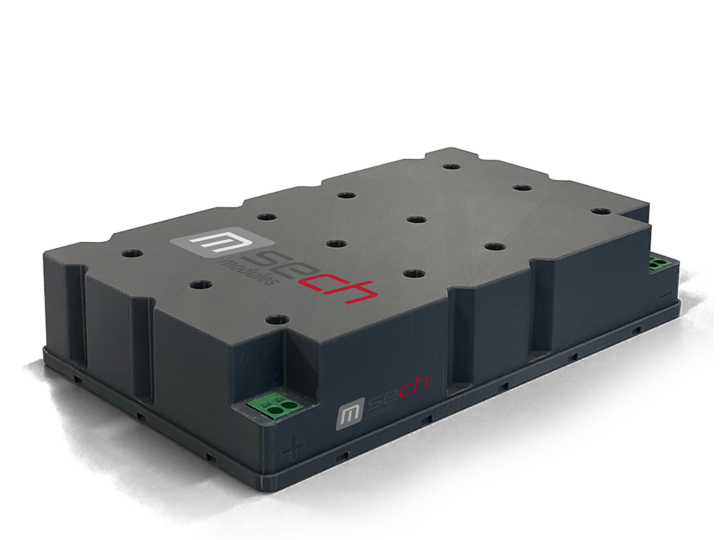

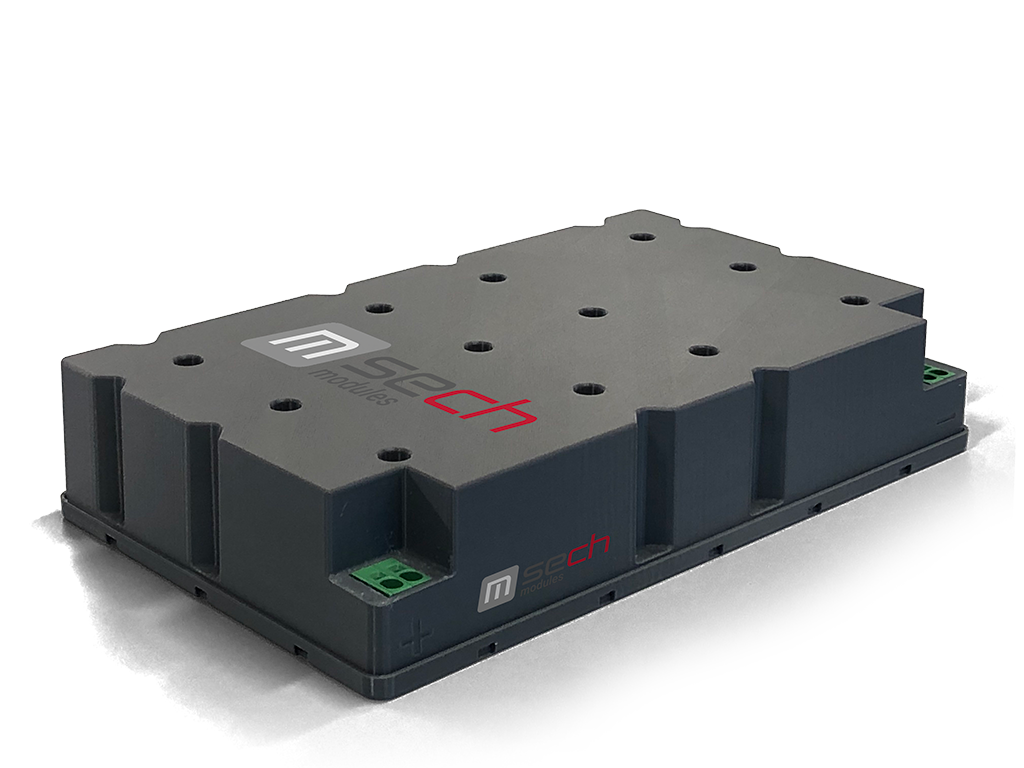

174V medium size cell module

6.2F

SECH’s 174V high voltage module is designed to provide energy storage and power delivery for wind turbine pitch control, short-term uninterrupted power supply (UPS) and other energy supply applications. It’s a turnkey solution to simplify the installation process and costs. The module features soldered cells, passive balancing and temperature monitoring.
